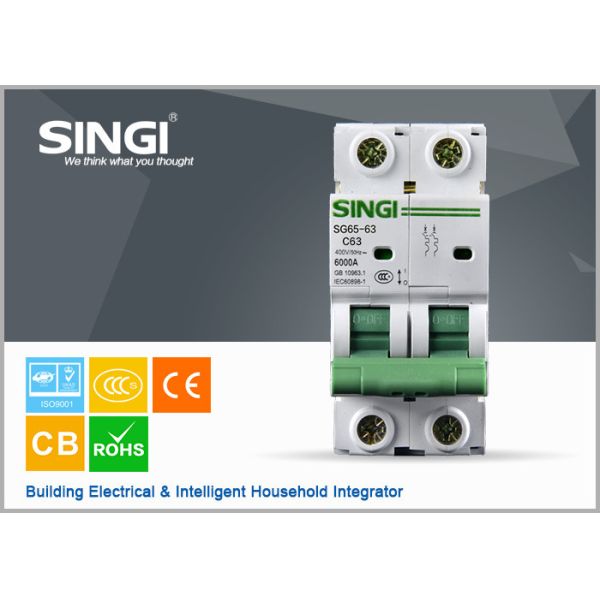

short circuit protect overload circuit breaker mcb c63 remote control 132kv sf6 circuit breaker
1.Application
The product is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with GB10963,IEC60898 standards.
2.Main technical data
1.Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A;
2.Tripping characteristics:B(3-5)In,C(5-10)In,D(10-15)In;
3.No. of pole:1P,2P,3P,4P
4.Breaking capacity:4.5KA,6KA;
| Standard | | IEC60898 |
| Number of poles | | 1P,2P,3P,4P |
| Rated current(In) | | 6,10,16,20,25,32,40,50,63 |
| Rated voltage(Un) | | AC240/415V |
| Rated frequency | | 50/60Hz |
| Tripping curve | | B,C,D |
| Release action characteristics | Time delay | 1.13In>1h Non-trip |
| 1.45In<1h trip |
| 2.55In 1s~60S trip |
| Instantaneous(Curve C) | 5In >0.1s Non-trip |
| 10In<0.1s trip |
| Magnetic releases operate | | B curve:between 3 and 5In |
| C curve :between 5 and 10In |
| D curve: between 10 and 15In |
| Ratedbreaking capacit(Lcn) | | 3000A |
| Endurance | | >2500 |
| Circumstance temperature | | -5~+40 |
| Electrical life | | >6000times |
| Mechanical life | | 20000 times |
| Tropical ration | | Treatmen 2(RH95%,at 55°C) |
| Protection degree | | IP20 |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
