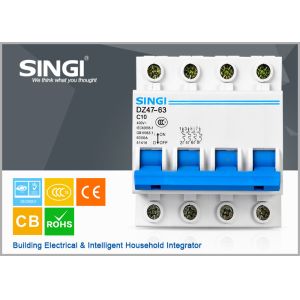

Miniature type of circuit breaker 4P mcb , household circuit breakers

Product Categories
ZHEJIANG SINGI ELECTRICAL LLC
Contact Now

Miniature type of circuit breaker 4P mcb , household circuit breakers

Brand Name : Singi

Model Number : DZ47-63

Certification : CE/CB/cqc/ISO9001/CCC

Place of Origin : China YUEQING LIUSHI

MOQ : 3800pcs

Price : 0.01-38

Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C

Supply Ability : 58,200 pcs per day

Delivery Time : after deposit normally 38 days

Packaging Details : CHINA STANDARD PACKING PACKAGE

rated voltage : 230/400VAC

pole : 4

Standard : IEC60898

breaking capacity : 6KA

rated current : 10Amp

case material : PA66

sale : Factory direct sale

protection : overload and short circuit

performance : heat resistant

type : lighting "C"

Contact Now

Miniature type of circuit breaker 4P mcb , household circuit breakers

DZ47-63 is such features as delicate appearance, light weight, excellent and reliableperformance, high breaking capacity, rapid tripping and mounted by rail. Its enclosure and com-ponents adopts high fire-retarding and shock-resistance plastic of long durability. It mainly servesfor protecting the circuits of AC 50Hz, 230V of single pole, 400V of two poles or three or fourpoles from overload or short-circuit, and also for unfrequent making and breaking electricalapparatus and lighting circuit.It conforms with the standards of IEC60947-2.

Main Technical Parameter

Type DZ47-63
Pole 1P 2P,3P,4P
Rated current (A) 63,80,100
Rated voltage (V) 230 400
Ambient temperature -5oC~+40oC
Type of instantaneous release C,D
Rated short circuit breaking capacity Icn(kA) 6

Residual current breaking time

In(A) In(A) Breaking time(s) when equals to rating following
In 2In 5In 5,10,20,50,100,200,500a(A) Itb
6-63 0.03, 0.05, 0.1, 0.3 0.1 0.06 0.04 0.04 0.04

The over-current protection property

Ambient Temperature Initial Status Test Current Expected Result Expected Result NOte
40±2oC Cold position 1.05In(In≤63A) t≤1h Non-release -
Cold position 1.05In (In[63A) t≤2h Non-release -
Carried out immedi-ately after previous test 1.30In(In≤63A) t < 1h Release Current smoothlyrises to specified value within 5s
1.30In (In>63A) t < 2h Release
-5~+40oC Cold position 8.00In t≤0.2s Non-release -
Cold position 12.00In t< 0.2s Non-release -

Miniature type of circuit breaker 4P mcb , household circuit breakers


Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door,
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving,
3. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Miniature type of circuit breaker 4P mcb , household circuit breakers


Characteristic Curve
Miniature type of circuit breaker 4P mcb , household circuit breakers

Dimensions
Miniature type of circuit breaker 4P mcb , household circuit breakers

Product adventages:

Features: Din rail Type Mcb
Biggest Quantity For Useage
Cheapest Type And Very Stable Quality
Used by All Over The World
Quality: Passed CE, CB Test


Others (price,package and service)

Certification : CE, CB, SGS, ISO 9001:2000
Packing: 12P in a inner box, 240P in a carton
Delivery date: around 20-25 days based on your order quantity
MOQ: 500pcs
Supply Ability: 100,000pcs/month
Payment Term: T/T, L/C or others for negotiation.
Samples Offer: SHCET will offer free samples in reasonable quantity for customer quality checking.
Samples arrangement: Samples will be prepared to sending in about 3 working days.
(And DHL 3-5days; UPS 3-5days; Fedex / TNT 3-5days; EMS 7 days to reach destination)
